Hook: The Claas Jaguar 960 is one of the most popular forage harvesters in the world, known for its reliability and the legendary V-MAX chopping drum.
Purpose: Whether you are looking to buy a used Claas Jaguar 960 or maintaining your current fleet, understanding the technical data (technische daten) is crucial for optimizing harvest quality.
Pivot: However, specs are only half the story. Keeping the Claas Jaguar 960 running at peak performance requires high-quality wear parts.
In this guide, we break down the key specifications of the Jaguar 960 and explain how high-quality aftermarket parts can help you maintain these factory standards for a fraction of the cost.
Key Engine and Drive Specifications
Specification (Attribute)
Data / Value
Engine Manufacturer
Mercedes-Benz
Engine Model
OM 460 LA
Cylinders / Type
6-cylinder, Inline
Displacement
12.82 Liters
Maximum Output (ECE R 120)
460 kW / 626 hp
Rated Engine Speed
1800 rpm
Fuel Tank Capacity (Standard)
1050 Liters
Fuel Tank Capacity (Optional)
1350 Liters
Urea Tank (AdBlue/DEF)
130 Liters
Ground Drive System
Hydrostatic, 2-speed mechanical gearbox
Max Road Speed
40 km/h (25 mph)
Drive Axle
E-Axle (Optional) or Standard Hydrostatic
The Jaguar 960 is designed for high throughput. Below are the core technical data points that define its power.
Note: Specifications may vary depending on the model year (Type 494/497/498/502). The data above refers to the standard Jaguar 960 configuration.
Engine Power and Type
Depending on the manufacturing year, the Jaguar 960 is typically powered by a reliable Mercedes-Benz or MAN engine.
Engine Model: Mercedes-Benz OM 460 LA (Inline 6) or MAN D2868 (V8 in newer Tier 4i models).
Maximum Power: Approx. 626 hp (460 kW) to 653 hp.
Fuel Tank Capacity: 1150 Liters (Standard) / 1350 Liters (Optional).
Why Horsepower Matters for Parts Selection
With over 600 horsepower driving the chopping assembly, the stress on your knives and shear bars is immense. Using inferior steel can lead to rapid dulling, which increases fuel consumption by up to 15%. To utilize the full 653 hp efficiently, you need premium heat-treated knives.

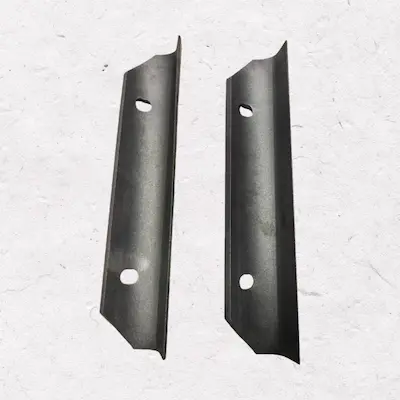

Pro Tip: Check out Agmishop’s [Replacement Corn Knives OEM：13902021 13902031 for Claas Jaguar 900 series] – engineered to handle high-horsepower stress.
Claas Jaguar 960: Key Technical Data
Specification
Data / Value
Engine (Motor)
Mercedes-Benz OM 460 LA / MAN D2868 (depending on year)
Power Output
Approx. 626 – 653 HP (460 – 480 kW)
Chopping Drum Width
750 mm
Knife Arrangement
V-MAX (V-Classic)
Number of Knives
20, 24, 28, or 36
Fuel Tank Capacity
1150 – 1350 Liters
Corn Cracker
Multi Crop Cracker (MCC) Classic / Max / Shredlage
Performance Analysis: The V-MAX Chopping Drum
Content: Explain that the heart of the Jaguar 960 spec sheet is the V-MAX drum. It’s designed for high throughput.
Problem: High horsepower means nothing if the knives are dull. Dull knives increase fuel consumption by up to 15%.
Solution (Soft Sell): To maintain the spec-sheet performance, you need sharp, durable knives.
Internal Link: “Check out our replacement [Knives for Claas Jaguar V-MAX] – Made from hardened steel for longer wear life.”
Intake System & Feed Rollers
9062020 – claas feed roller – upper rear
Content: Discuss the intake width and the hydraulic reverser specs. The “pre-compression” is vital for chop quality.
Problem: Look at the feed rollers. If the teeth are worn (rounded), the machine cannot pull in the crop evenly, causing blockages.
Solution (Soft Sell): Don’t ignore the intake. Agmishop manufactures compatible [Feed Rollers] (e.g., Upper Rear 09062020) that match the original OEM weight and dimensions perfectly.

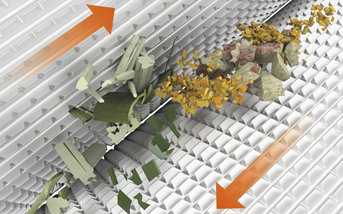

Corn Cracker Options
Content: The Jaguar 960 usually comes with MCC (Multi Crop Cracker) units. Discuss the roller diameter specs (Diameter=250mm).

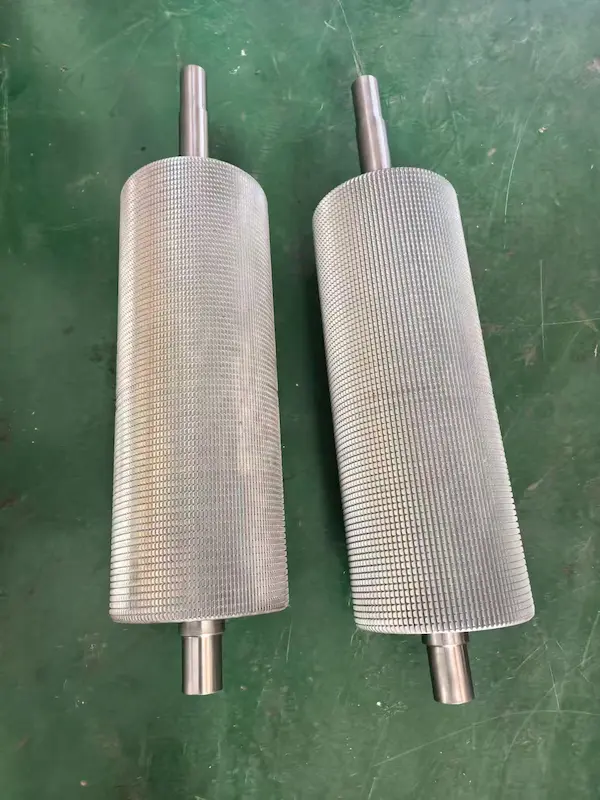

Solution: We supply replacement [Corn Cracker Rollers] designed to crush kernels effectively, ensuring your silage meets high nutritional standards.
Maintenance & Wear Parts Cost
Content: Owning a Jaguar 960 is an investment. Maintenance costs can be high if you rely solely on OEM parts.
